切石機 / stonecutter

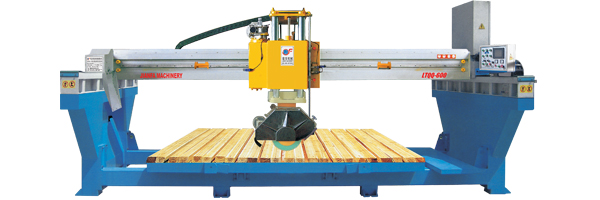

LTQQ-600連體式橋式切石機

LTQQ-600連體式橋式切石機

用途:用于高價值大規格花崗巖、大理石板材的加工。 特點:該機在整體上采用全自動大梁位移定位,微電腦控制,操作簡單,切割精度高,可最大限度的利用板材。整機主要元器件(變頻器,磁力尺,鐳射標線儀等)均采用進口優質零部件,從而保證機械性能穩定,適應性強,可靠性高。 Purpose: Especialy suitable for high value big norms of granite and marble processing. Features: Controlled by microcomputers, the machine is generally positioned by fully automatic girder displacement, with easy operation and high cutting accuracy, and can make use of slabs to the utmost extent. Main elements of the machine (frequency converter, magnescale and laser level) are imported high-quality components and parts, which ensure the stable mechanical property, strong applicability and high reliability. Inregrated Bridge cutting machine

主要技術參數/Technical Data
名稱

appellation

LTQQ-600

鋸片直徑

blade diameter

400-600mm

最大切割尺寸

max cuting size

3200X2000X160mm

工作臺尺寸

worktable dimensions

3200X2000mm

工作臺旋轉角度

range of trolley

0/360n°

工作臺垂直翻板角度

Worktable rotating degree

0-85n°

機頭旋轉角度

Head rotating degree

90n°

主電機功率

main motor power

18.5kw

耗水量

water consumption

4m3/h

設備外形尺寸

dimension of external form

5800X3500X2800mm

注:加工長寬尺寸和設備外型尺寸,電機功率,可根據客戶需要制作對應尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
