主要技術(shù)參數(shù)/Technical Data

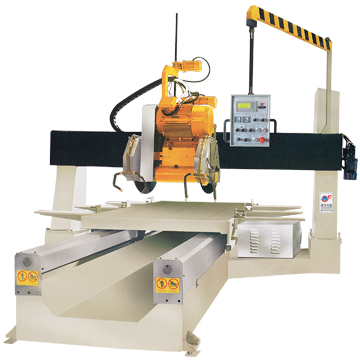

| 名稱 | appellation | LMFX-1600 |
| 最大加工尺寸 | max.processing size | 3000X1600X350mm |
| 設備外形尺寸 | dimension of external form | 5300X3000X2400mm |
| 最大加工深度 | max.cutting thickness | 180mm |
| 鋸片直徑 | saw blade diameter | 350-600mm |
| 切割速度 | cutting feed | 0-7500mm/min |
| 主電機功率 | main motor power | 18.5kw |
| 耗水量 | water consumption | 4m3/h |
| 總重量 | weight | ≈5700kg |
Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
