首頁產品中心切邊機ZHQBJ-3000高效組合自動縱橫切邊機
切邊機 / Trimming machine

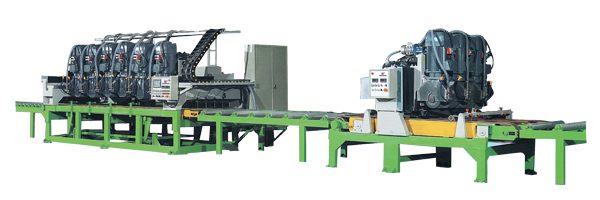

ZHQBJ-3000高效組合自動縱橫切邊機

ZHQBJ-3000高效組合自動縱橫切邊機

特點:高效率的石材切割設備,結構合理,運行可靠,加工精度高,自動化程度高等優點。獨立的橫向梁與主付動變頻調整,可滿足多種切割要求。采用先進的PLC智能控制系統,實現全自動控制。 本生產流水線共由5臺設備來組成(進板機,縱切機,輸送機,橫切機,收板機)注:可根據客戶需要制作對應的尺寸。 Features: Really stone cutting equipment with high efficiency, reasonable structure, reliable operation, high machining accuracy, high degree of automation, etc. Independent of the transverse beam and the main pay dynamic frequency conversion adjustment, can meet various requirements of cutting. Adopts advanced PLC intelligent control system, to realize automatic control. This production line is composed of five devices to total (into the machine, slitting machine, conveyor, cut machine, collecting machine) note: according to customer need to make the corresponding size.

主要技術參數/Technical Data
名稱

appellation

ZXQBJ-1000

HXQBJ-3000

可裝刀片直徑

But the blade diameter

350-400mm

350-400mm

切板規則

Cutting board rules

300-850mm width

300-2800mm width

切割頭數量

Number of cutting head

3pcs

7pcs

最大切割深度

The biggest cut size

10-60mm


10-60mm

主電機功率

Main motor power

15kw

15kw

電機總功率

Motor total power

55kw

120kw

工作臺輸送速度

workbench transmission speed

0-3000mm/min

0-7000mm/min

外形尺寸

dimension of external form

3180x1550x1880mm

4680x2080x1880mm

注:加工長寬尺寸和設備外型尺寸,電機功率,可根據客戶需要制作對應尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
