切邊機 / Trimming machine

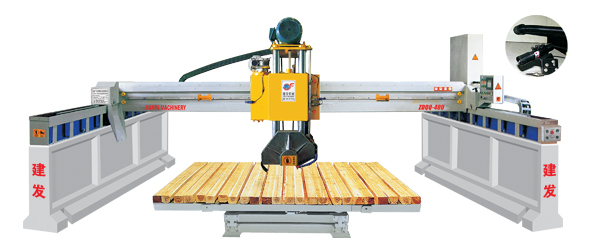

紅外線導柱橋式切石機ZDQQ-400

紅外線導柱橋式切石機ZDQQ-400

用途:用于高價值大規格花崗巖、大理石板材的加工。 特點:該機采用微電腦控制,與其相配的工作臺可在小平面內360°旋轉,45°一個定位(可跳躍式角度定位),85°翻板。精密的制造組裝以及特有的邊梁保護裝置,觸摸式操作系統,使其具有高精度、高穩定性、高效率、操作簡便等特點。 Purpose: Especialy suitable for high value big norms of granite and marble processing. Features: The machine uses the microcomputer control,and within the workbench but match in the plane of the 360° rotation,45° a positioning(But prancing angle positioning),85° recumbent flap. precision mnufacturing assembly and unique side beams protection device, feeling type operating system,make it has high precision, high stability, high efficiency of, simple operation,etc.

主要技術參數/Technical Data

名稱

appellation

ZDQQ-400

ZDQQ-700

工作臺尺寸

worktable dimensions

3200x2000mm

3200x2000mm

設備外形尺寸

dimension of external form

6000x5000x2800mm

6000x5000x2800mm

鋸片直徑

saw blade diameter

350-400mm

350-700mm

主電機功率

main motor power

15kw

18.5kw

前后電機功率

after motor power

1.5kw

1.5kw

左右電機功率

about motor power

1.5kw

1.5kw

翻轉,升降,轉臺油泵電機功率Power of oil pump motor on rotary lifting turntable

2.2kw

2.2kw

臺面轉角

range of trolley

0-360n°

0-360n°

切割行程(前后)

cutting range front/rear

3200mm

3200mm
切割行程(左右)

cutting range left/right

3500mm

3500mm

切割行程(上下)

cutting range up/down

200mm

450mm

總重量

weight

≈6300kg

≈6500kg

注:加工長寬尺寸和設備外型尺寸,電機功率,可根據客戶需要制作對應尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
